| Parameter for KA Series Industrial Air Compressor | ||||||||||
| Model | Motor Power | Cylinder | Air Flow | Pressure | Air Tank | Dimension | Weight | |||
| hp | KW | Dia.*pcs | m3/min | CFM | Bar | Psi | L | L*W*H | KG | |
| KA3 | 3 | 2.2 | 80*2 | 0.3 | 10.6 | 8 | 116 | 130 | 1310×500×960 | 150 |
| KA4 | 4 | 3 | 80*2 | 0.4 | 14.1 | 8 | 116 | 130 | 1310×500×960 | 160 |
| KA5.5 | 6 | 4 | 80*2 | 0.52 | 18.4 | 8 | 116 | 180 | 1425×560×1050 | 250 |
| KA7.5 | 8 | 5.5 | 100*2 | 0.67 | 23.7 | 8 | 116 | 180 | 1425×560×1050 | 300 |
| KA10 | 10 | 7.5 | 100*3 | 1 | 35.3 | 8 | 116 | 230 | 1560×650×1170 | 400 |
| KA15 | 15 | 11 | 120*3 | 1.51 | 53.3 | 8 | 116 | 300 | 1640×700×1220 | 500 |

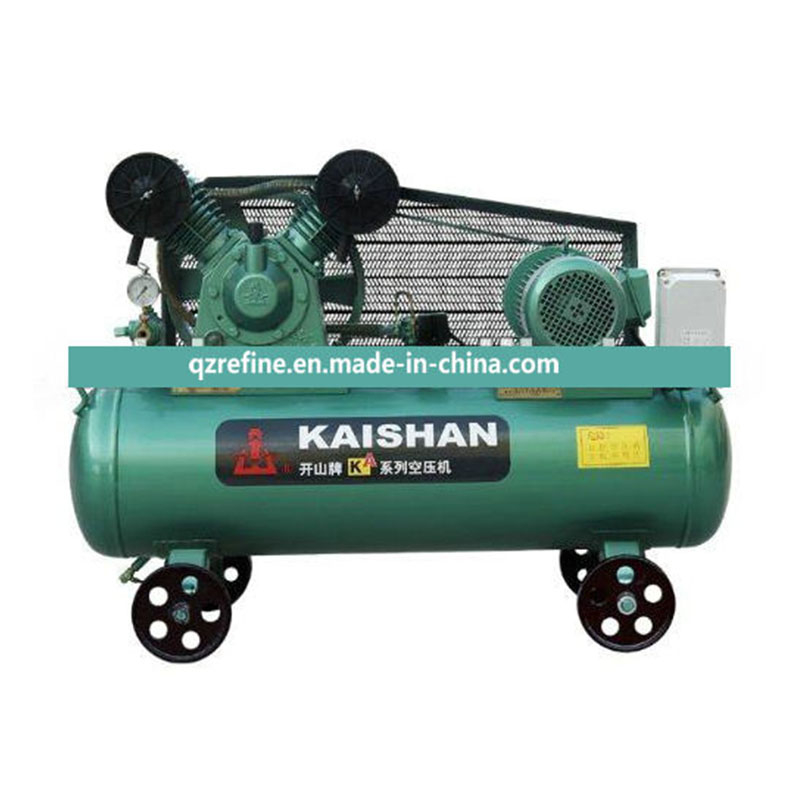

1, Kaishan KA serious Piston type air compressor

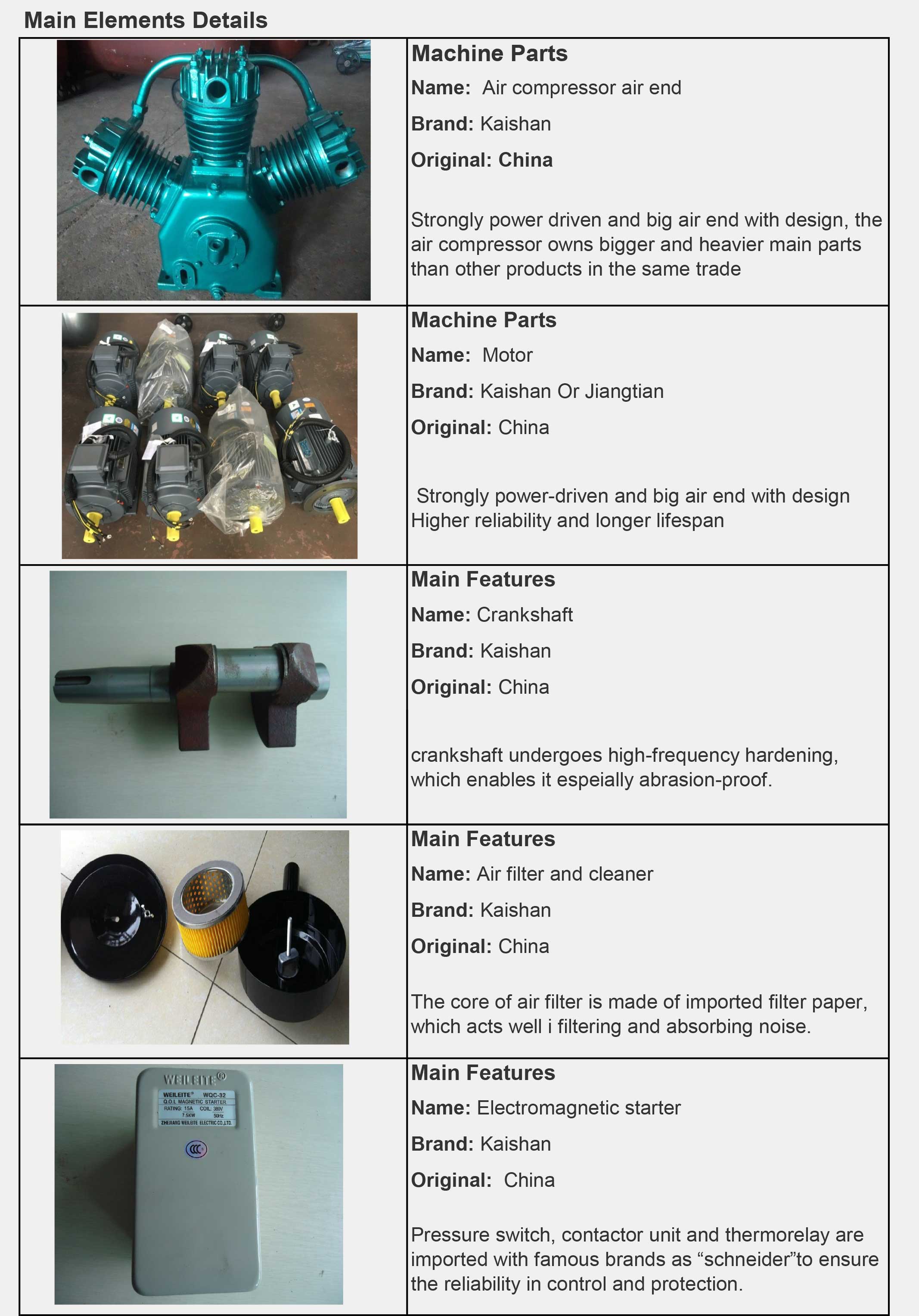

1.Strongly power driven and big air end with design, the air compressor owns bigger and heavier main parts than other products in the same trade with better selection and sufficient using of material especially with main fittings, In addition ,it is more suitable to be applied in the continuous operation under heavy load for long working time with higher reliability and longer lifespan.
2.Special designed is made in heat emission and air flow , which leads to low air-output temperature and low possibility of carbon deposite .
3.The piston ring imported from Japan is introduced in designing pistol ring , which is durable and sealable.
4.Crankshaft undergoes high-frequency hardening ,which enables it especially abrasion-proof.
5.Some relevant working unites are received precision balance, which makes it more stable with lower noise.
6.The core of air filter is made of imported filter paper, which acts well in filtering and silencing of noise.
7.Special oil separation construction is built insite the frontend jacket , so no oil vents form the breather valve , which ensures low oil consumption and cleanness of machine body.
2, Characteistics
a.Designed with low speed in operation, the air-compressor is quieter in motion and longer in lifespan
b.Feather valve is adopted with higher efficiency
c.The core of air cleaner is made of imported filter paper, which acts well in filtering and absorbing noise and is durable
d.The piston ring imported from Japan is introduce in designing pistol ring , which is durable and sealable
The air compressor also could be used in different filed, for tire air inflation, plastic machinery, vessel, medical sand blast, spray paint etc. except for the mining machinery.
You can choose the suitable air compressor as your request.
3. Features and advantages
Main advantage: all spare part are with top quality material , and it makes the air compressor use for long time life and easily to realize large capacity and high voltage output.
1.Use Sweden steel for valve block and leaf spring, it makes the high efficiency after special handling.
2. To make sure the lubricating oil consumption, we adopt the monomer casting piston with good elasticity.
3.Use durable cylinder made of boron cast iron which especially for the wild environment.
4.Use the die casting techniques for cylinder head. It is with streamline design, beautiful shape and good heat dissipation.
5.Use rare earth magnesium alloy nodular cast iron crankshaft for the bent axle, after heat treatment and surface quenching to make sure it with excellent comprehensive mechanical properties.
6.It is light weight for move it easily to any place.
7.Easily to operate and keep maintains
8.Fuel-efficient, electricity-saving and make all costs low.
