| Specifications of KJ industry Piston Air compressor : | |||||||
| MODEL | MOTOR POWER | CYLIDER | CAPACITY | WORKING PRESSUE | AIR TANK | DIMENSIONAL MM | WEIGHT |
| HP/KW | DLAXQTY | M³/MIN | MPA/Bar | M³ | KG | ||
| KJ-40 | 4/3 | Φ65X3 | 0.36 | 0.8(8) | 0.11 | 1220X550X900 | 125 |
| KJ-75 | 7.5/5.5 | Φ80X3 | 0.67 | 0.8(8) | 0.135 | 1450X550X1030 | 215 |
| KJ-100 | 10/7.5 | Φ90X3 | 0.9 | 0.8(8) | 0.19 | 1450X550X1060 | 240 |
Features :

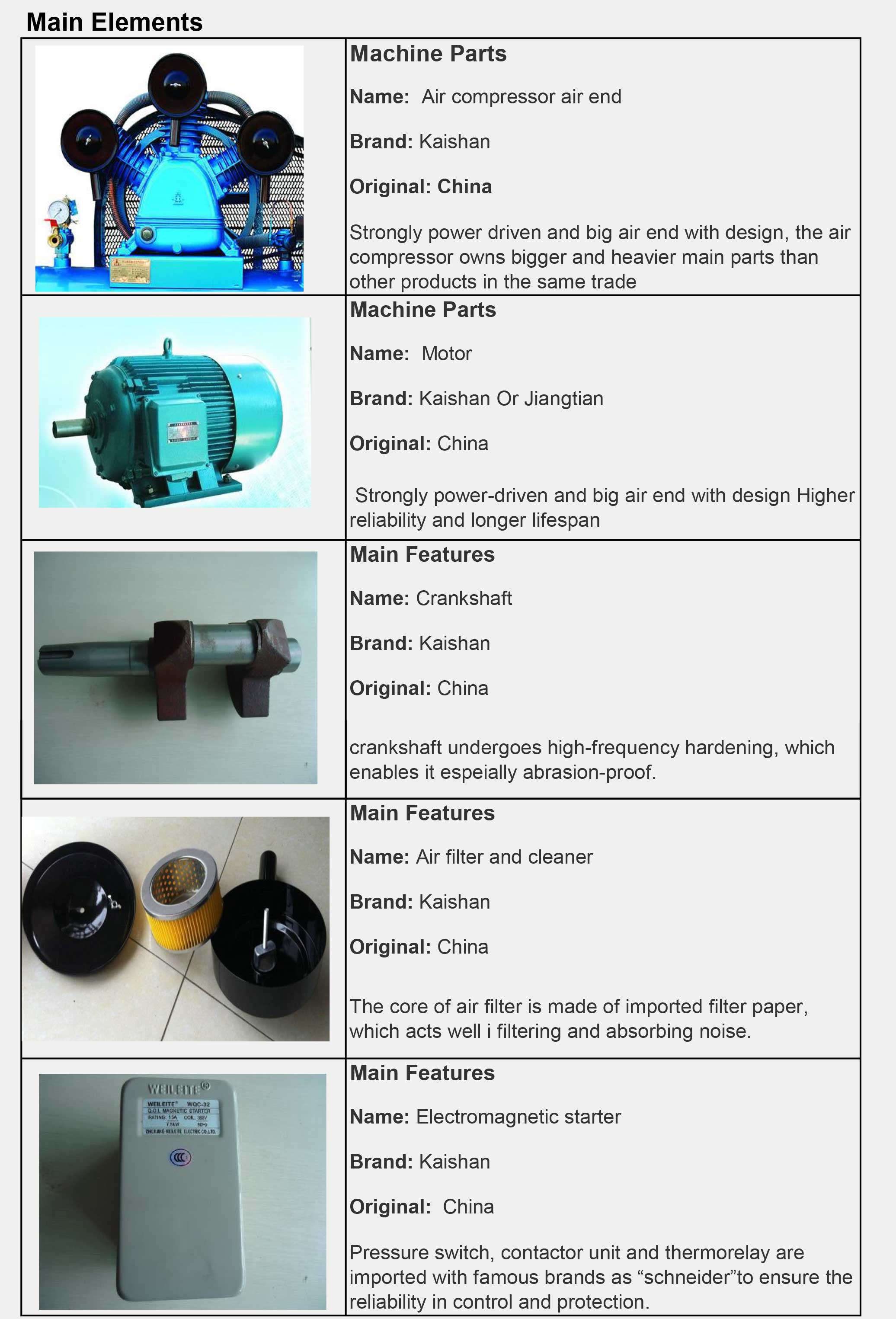

1.Powerful big air end, low speed, reliable and long lifespan
2.Unique design of radiation, low air delivery temperature, non carbon deposition and high efficient
3.Group valve design, material of valve block is made of stainless steel imported from Sweden, group valve spring is imported from Japan
4.Piston ring is imported from Japan, durable and no oiling
5.Precise moving components, low noise emission and operating stably
6.Air filter core is made of imported filter paper, durable, good filtration and erasure effect
7.Oil separation design, no oiling in breather valve, low oil consumption, ensure the machine body clean
8.Pressure switch, contactor, thermal relay are made of imported brands, such as SCHNEIDER, to ensure controllable and reliable
