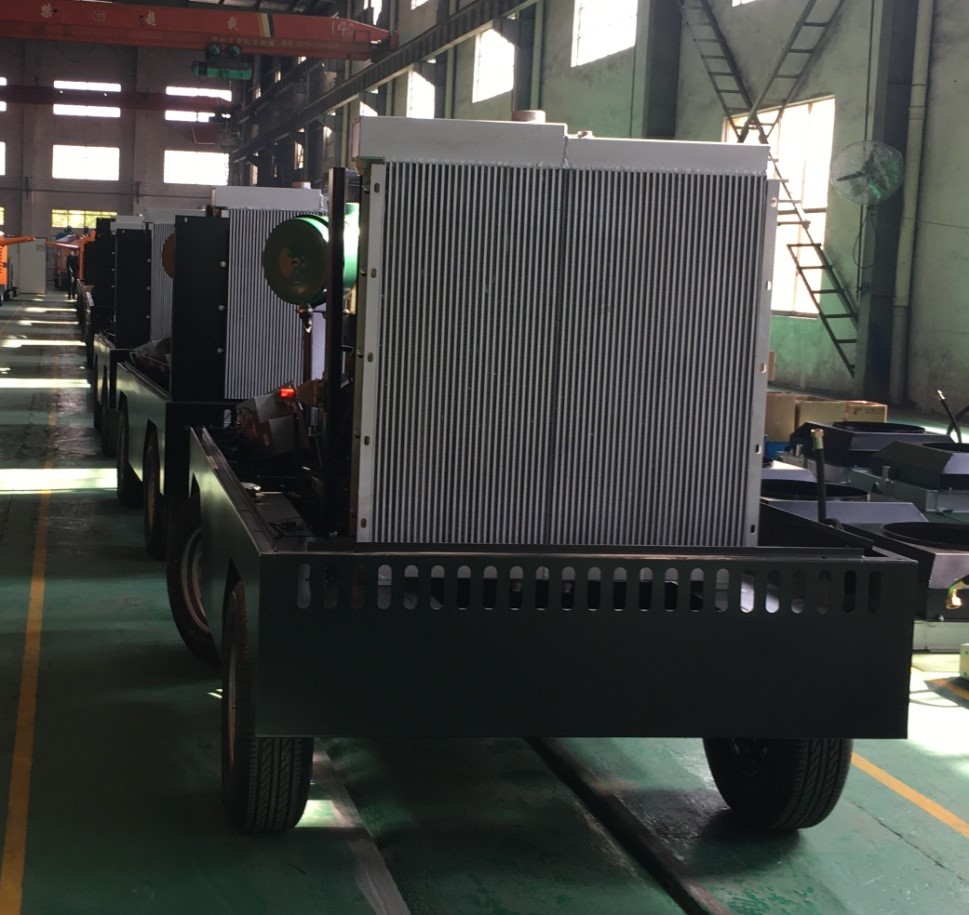

Portable Screw Air Compressors (Diesel power series) are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others.
Kaishan's Portable Screw Air Compressors (Diesel power series) are highly efficient and reliable with a full range of selections. The power range falls between 37 kW to 300 kW, the displacement covers up to 40 m3/min, and the discharge pressure amounts up to 2.5 MPa.
Product Description KSCY superiority
1. More beautiful appearance, superior anti-corrosion performance
2. Exhaust pipe is set in the tail position, more environmentally friendly
3. Part position and road system structure is more reasonable
4. Imports solenoid valve(advanced configuration)
5. Imported oil filter and customized oil and gas separator filter(Germany MANN)
6. Higher configuration of pipeline connection details parts
Efficient cooling system
The latest achievements in R&D center of North America, ensure the compressor always state the optimal operation. Independent oil, water, gas cooler with design of large diameter fan, to adapt to the cold and hot summer climate.

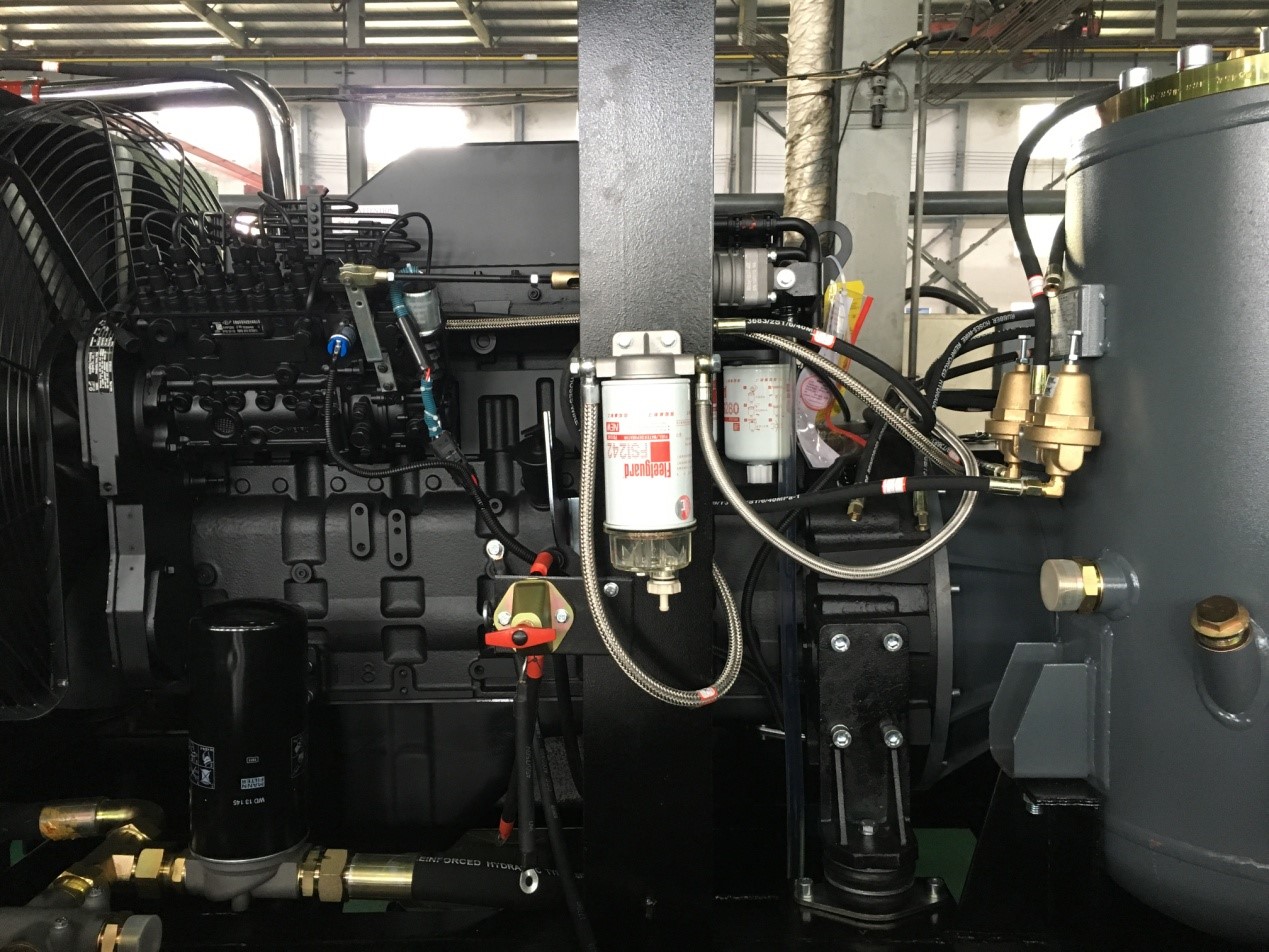

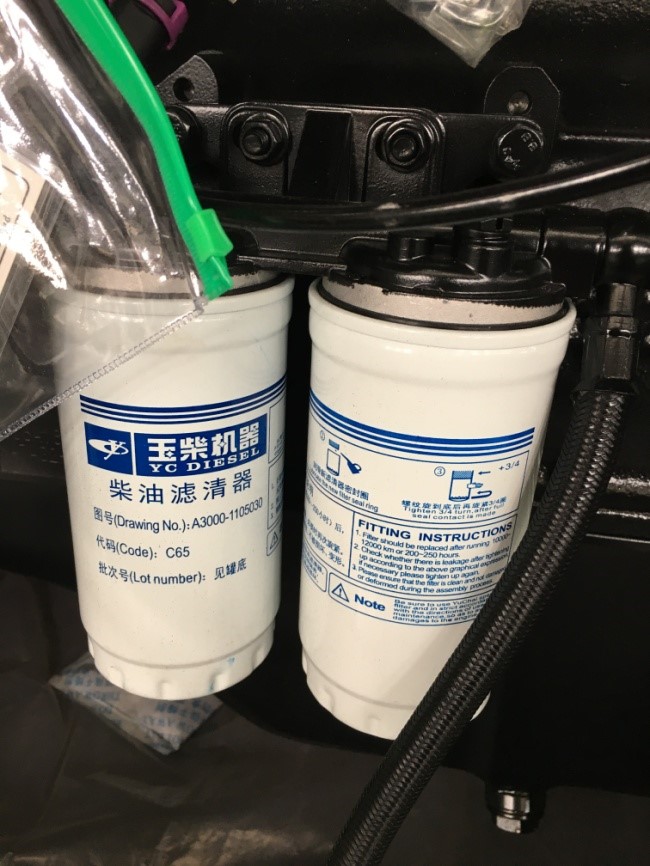

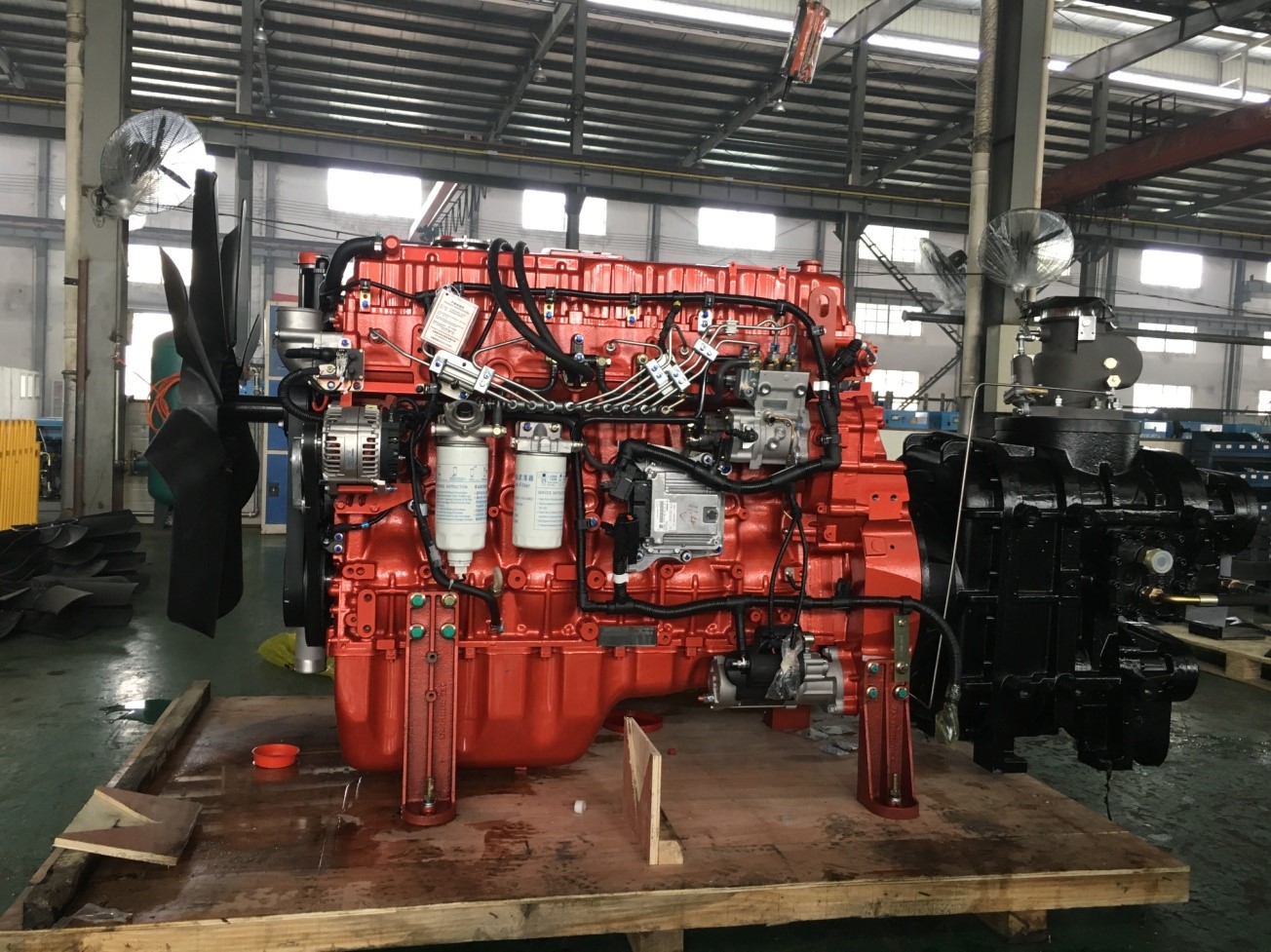

Heavy load EFI diesel engine
Fuel speed control system, electronically controlled high pressure common rail.
Assort cumins, Yuchai etc. diesel engine electronically controlled fuel injection system, according to load condition, electronic control fuel injection quantity precisely, to achieve best combustion state in full range running.
Triple air filtration system
The patent maintenance-free centrifugal air pre-filter filter out more than 90% of the dust and impurities, make filter maintenance and change cycle prolong 5 times; Whirlwind main air filter precision strainer filtering out the rest of the dust, ensure there is no wear and tear;The security filter can make the filter maintenance with the machine non-stop, to ensure the safe operation of the machine. Suitable for continuous operation under harsh conditions such as desert and multi-dust.
Triple oil and gas separation system
Reduce oil separation system too little or too much influence on the oil content of compressed air, always keep the oil content of compressed air less than 3 ppm. Clean compressed air is helpful to safe operation of gas equipment.

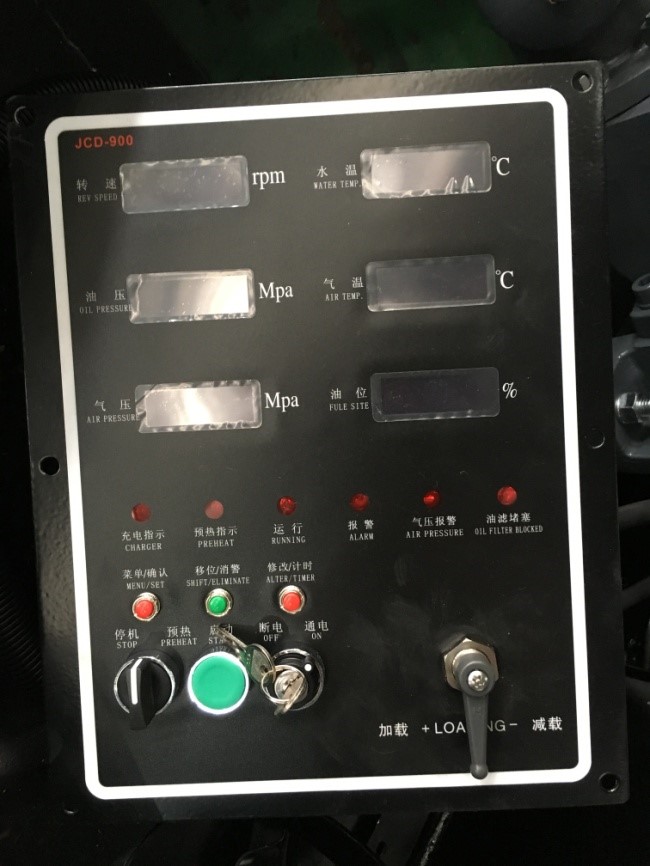

Computer control system
The interface of microcomputer control system is friendly and intuitive, shows all the running speed, gas supply pressure, oil pressure, exhaust temperature, coolant temperature, fuel level, operation parameters, and has a fault self-diagnosis, alarm and shutdown functions. Simple operation ensure the safe of the machine unattended.
Optional remote network monitoring systems, even in the office can the machine running status be clear at a glance.
Optional low temperature starting system
Fuel oil heater pump the coolant within the engine block to the heat exchanger, pump the fuel within the fuel tank to burner and burn. Improve the temperature of the cooling liquid, the lubricating oil and the whole machine through the cycle of heat transfer, also ensure starting performance of the diesel engine in cold or high temperature environment.
